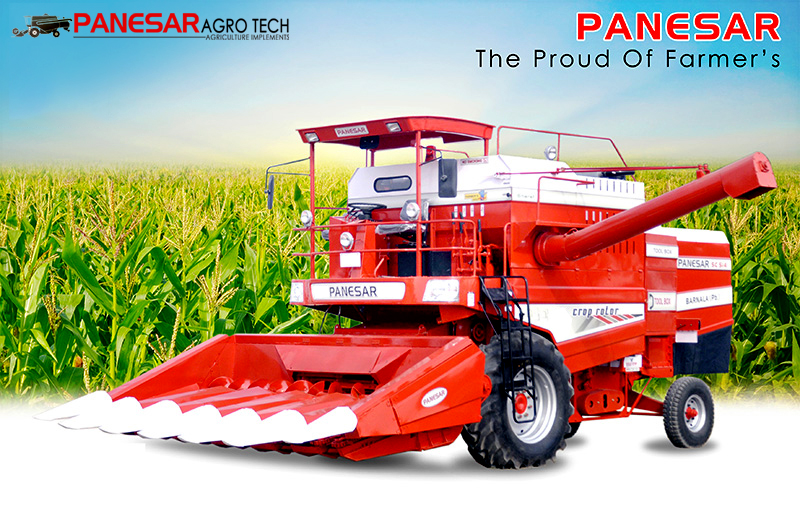

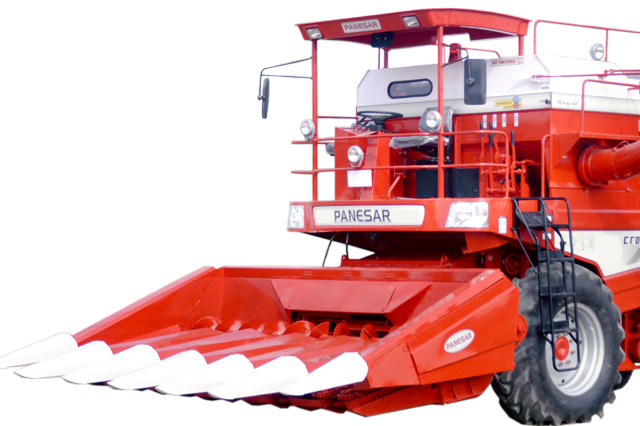

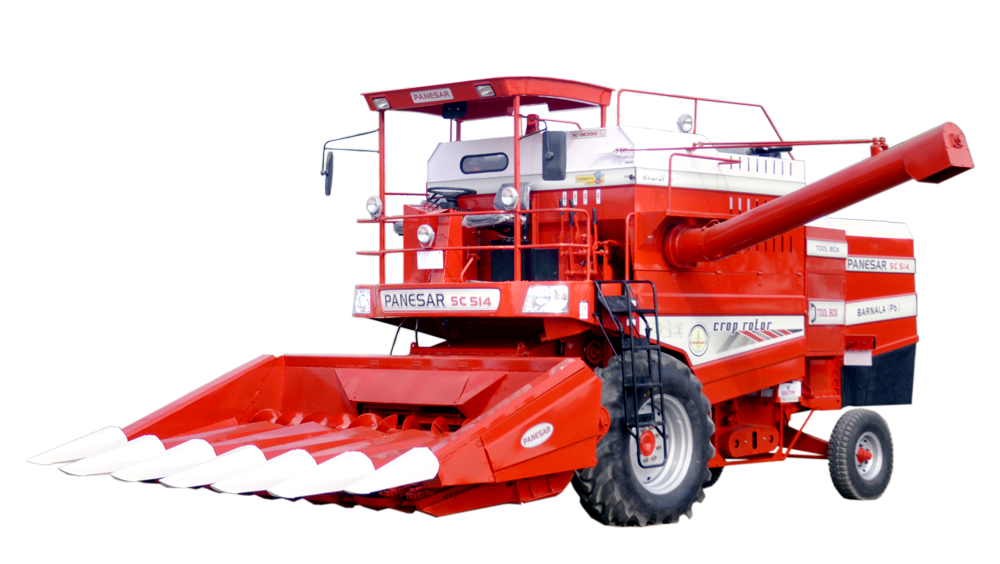

Self Harvester Combine SC 9500 (Maize Cutter)

SC 9500 Self Propelled Combine Harvester is built with utmost reputation for what is important to farmers when it comes to harvesting, such as capacity, fuel efficiency, grain quality, low grain loss, reduced compaction and in field service availability. Panesar SC 9500 is a Self Propelled Multicrop Combine Harvester with Straw Walker Technology featuring diesel engines that are noted for the extraordinary power and reduced fuel consumption, while also complying with today's stringent emissions standards.

• Product Detail
• Technical Specification
• Picture
• Service and Maintenance

SC 9500 Self Propelled Combine Harvester is built with utmost reputation for what is important to farmers when it comes to harvesting, such as capacity, fuel efficiency, grain quality, low grain loss, reduced compaction and in field service availability. Panesar SC 9500 is a Self Propelled Multicrop Combine Harvester with Straw Walker Technology featuring diesel engines that are noted for the extraordinary power and reduced fuel consumption, while also complying with today's stringent emissions standards.

A.Engine	Ashok Leyland
Model	HGETIC3RD22
Power	101 HP at 2200 RPM
No. of Cylinder	Six
Air Cleaner	Dry
Cooling System	Water Cooled
B. CLUTCH
Type of Clutch	Single, Heavy Duty Dry Clutch
Dia (mm)	310
C. TRANSMISSION / DRIVE
No. of Gears	6 Forward, 2 Reverse
Gear Speeds (km/hr)
Forward	L-----H
1st Gear	2-----4
1st Gear	4-----8
1st Gear	8-----20
Reverse	4-----8

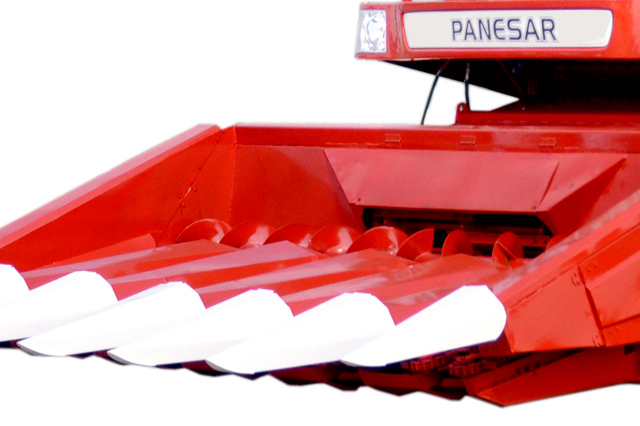

D. CUTTER BAR MECHANISM
for Maize Cutter
Width	11.25 feet (3.5 m)
No. of Rows	Six
Spacing of Rows	610
E1. THRESHING MECHANISM	W-----P-----M
	Rasp Bar---Peg Toth---Rasp Bar
Width (mm)	1270-----1230-----1270
Diameter of Thresher Drum (mm)	585-----605-----585
Speed (rpm)	750-1020
Speed Adjustment	By Means of Mechanical Aviator
E2. Concave
Clearance
Front (mm)	15 -45 ----- 15-45
Rear (mm)	8-30----- 10-40
Adjustment	Mechanical
E3. STRAW WALKER
No. of Straw Walker	5
No. of Steps	6
Length (mm)	3850
Width (mm)	235
E4. CLEANING SIEVES
Area
Upper Sieve	1.363
Lower Sieve	0.688
F. CAPACITIES
Grain Tank	2.013
Fuel Tank(Ltr.)	304 Ltr.
G. BATTERY
No. of Batteries	2
Capacity & Rating of each	12 V, 88 Ah

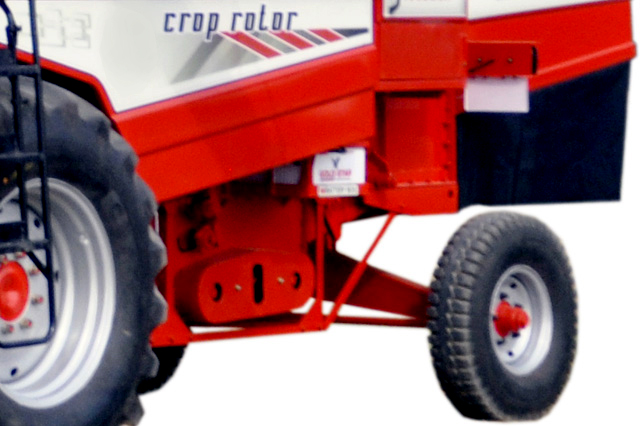

H. TYRE
Front	(18.4-30) 14pr
Rear	(7.50-16) 12pr
MAIN DIMENSION
In Working:
Length (mm)	8620
Width (mm)	6390
Height (mm)	4190
Ground Clearance (mm)	420
In Transport
Length (mm)	11820
Width (mm)	3250
Height (mm)	4100
Weight (Kg.)	8670 Kgs
